Pale Blue

PBR-30

Power 10 - 35 W Thrust 3 - 12 mN Total Impulse > 400 Ns
Wet Mass < 2.1 kg Envelope 2U Comm. IF RS-422 UART
REQUEST DETAILS

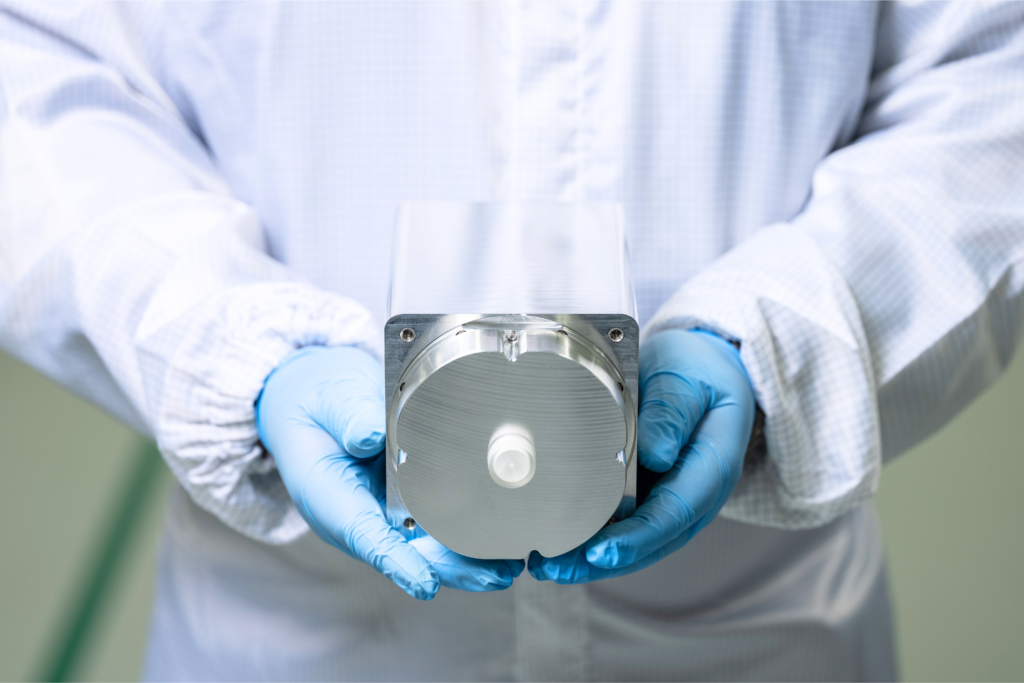

Pale Blue PBR-30 is a fully integrated propulsion system built on our flight-proven resistojet thruster technology. Designed in a compact 2U form factor, the system delivers exceptional performance, providing up to 12 mN of thrust at 35W, with optional throttling capability down to 3 mN at just 10W. It is delivered pre-filled and remains non-pressurized during launch, ensuring a non-hazardous payload and eliminating complex launch-site propellant handling.



Would you like to download our brochure?

>>> Get Our Brochure here

Request Details

By submitting the form, you agree to have read and acknowledge our Privacy Policy.

More systems

PBI
  • Optimal for NanoSats and MicroSats
  • 1U+ fully integrated system
  • >7,000Ns total impulse
PBR-10
PBR-10
  • Optimal for CubeSats
  • 0.5U fully integrated system
  • Nominal thrust at 6W
PBR-20
  • Optimal for CubeSats
  • 1U fully integrated system
  • Nominal thrust at 20W
PBR-50
  • Optimal for MicroSats
  • φ250 x 300mm fully integrated system
  • 10mN thrust at 50W
PBH-100
  • Optimal for MicroSats and SmallSats
  • 130 - 190W hall thruster system
  • Flexible tailored configuration
Water Hall-effect Thruster
  • Optimal for up to 700kg SmallSats
  • Ideal balance of thrust and isp
  • Flexible tailored configuration
