Pale Blue

PBR-10

Key benefits
  • Optimal for 3U-6U cubesats
  • 0.5U envelope
  • Nominal thrust at 6W

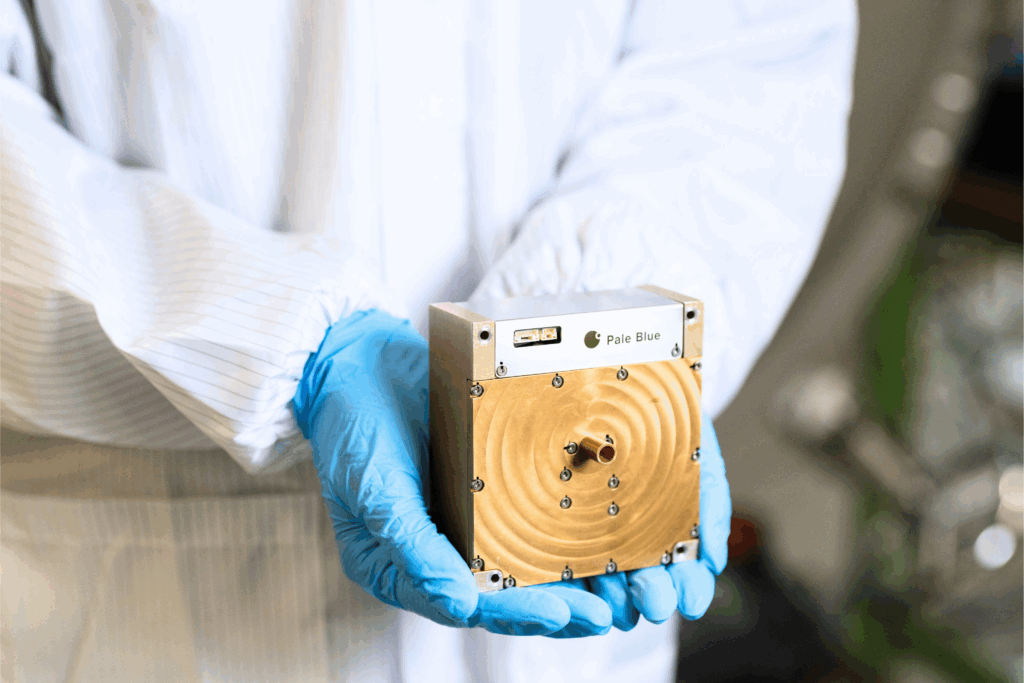

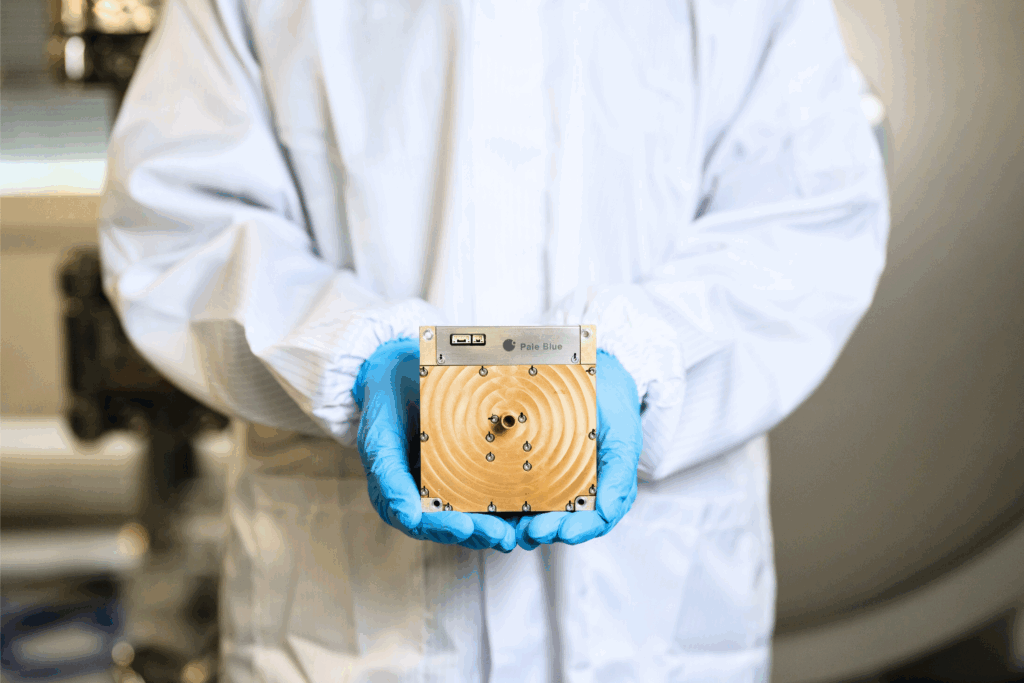

Pale Blue PBR-10 is a miniaturized water vapor propulsion system in a 0.5U form factor. It is a fully integrated system that incorporates thruster head, fluidics, electronics and propellant tank, and is clusterable to meet a wide range of spacecraft sizes.

The PBR-10 uses water as propellant and does not require a high-pressure storage. The propellant is preloaded to the tank prior to delivery from factory so that satellite integrators would not have to deal with complex fueling work.

Specification

Power 6 W Thrust 1.0 mN Total Impulse 55 Ns
Wet Mass < 0.6 kg Envelope 0.5 U Comm. IF RS422 UART
