Pale Blue

PBR-20

Key benefits
  • Optimal for 6U-8U CubeSats
  • 1U envelope
  • Nominal thrust at 20W

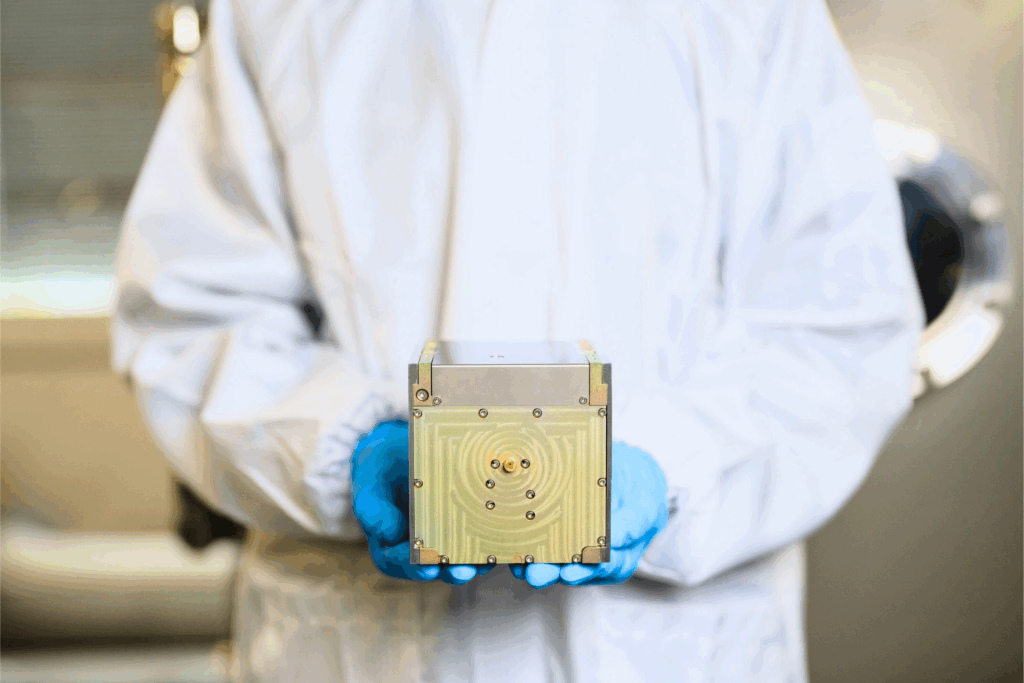

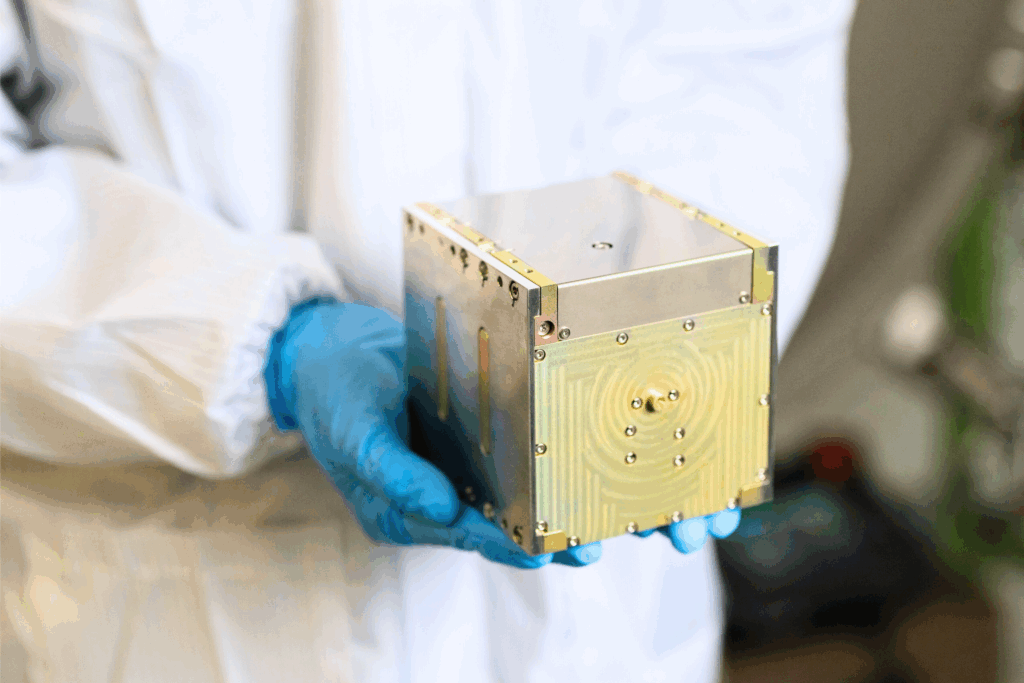

Pale Blue PBR-20 is a miniaturized water vapor propulsion system in a 1U form factor. It is a fully integrated system that incorporates thruster head, fluidics, electronics and propellant tank, and is clusterable to meet a wide range of spacecraft sizes. The PBR-20 uses water as propellant and does not require a high-pressure storage. The propellant is preloaded to the tank prior to delivery from factory so that satellite integrators would not have to deal with complex fueling work.



Read article: In-orbit operation verified again after 2 years in LEO – Pale Blue’s water-based propulsion system ran on a nanosat

Specification

Power 20 W Thrust 1.0 mN Total Impulse > 220 Ns
Wet Mass < 1.5 kg Envelope 1U Comm. IF RS-422 UART
